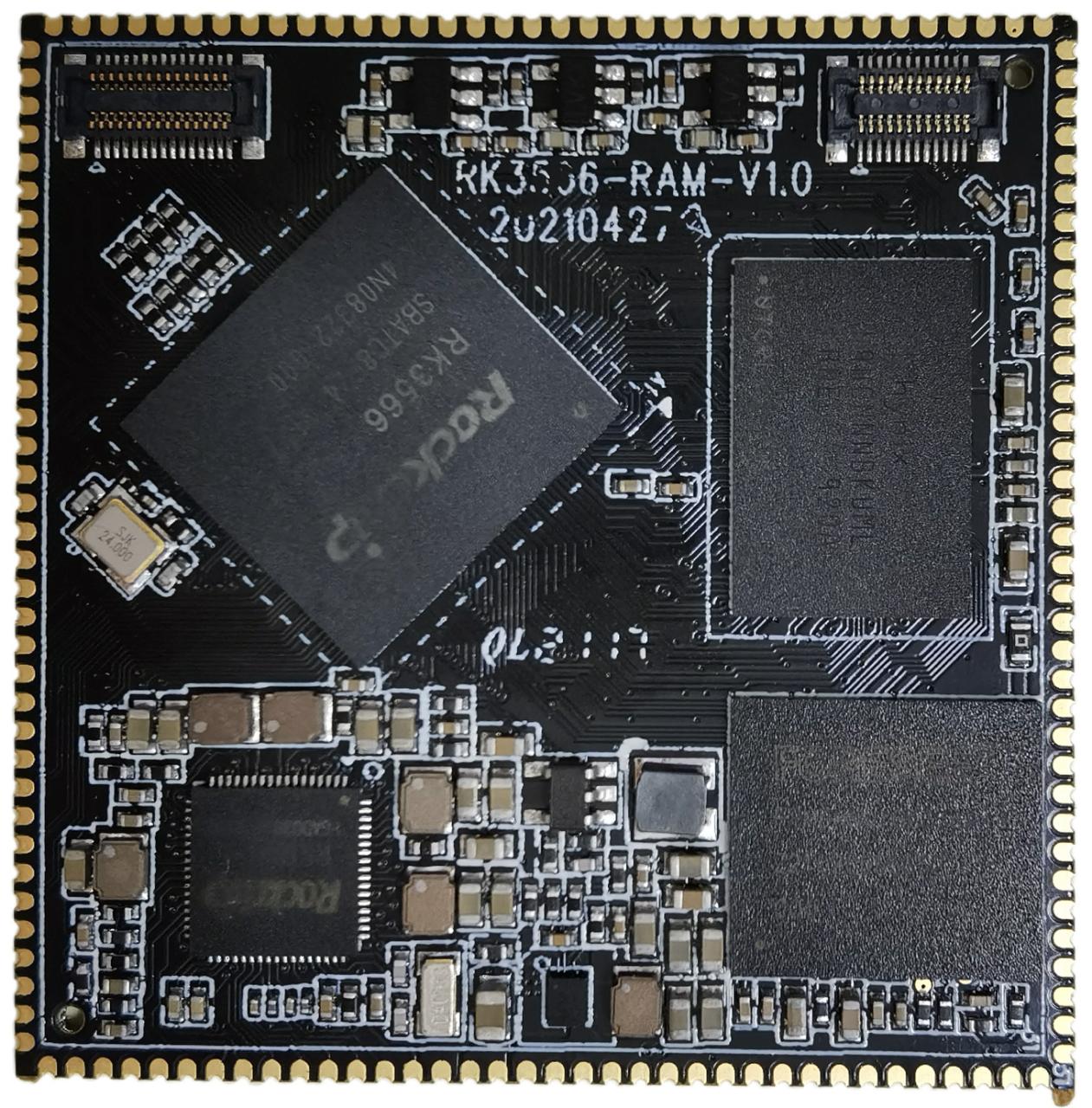

Core Board

M66

64-bit Industrial-grade Core Board — Low Power AIoT

Rockchip RK3566 Quad-core Cortex-A55 @ 1.8 GHz

Key Features

Why M66?

Industrial-grade temperature range with strict BOM control
RKNN NPU supports Caffe / TensorFlow / TFLite / ONNX / PyTorch / Keras / Darknet
Rich I/O for industrial gateways, HMI, edge controllers
Long-term availability (10+ years) for embedded projects

Specifications

CPU	Quad-core 64-bit ARM Cortex-A55 @ up to 1.8 GHz, 22 nm
NPU	0.8 TOPS @ INT8, RKNN accelerator
GPU	Mali-G52 2EE, OpenGL ES 3.2 / Vulkan 1.1
Memory	DDR4 / LPDDR4 up to 4 GB
Video	H.264/H.265 4K@60fps decode, 1080P@60fps encode
Display	HDMI 2.0 + eDP + MIPI DSI + RGB, dual-display
Interface	PCIe 2.0 / USB 3.0 / SATA 3.0 / GMAC / SDIO 3.0
Package	Stamp-hole / board-to-board connector, 86×55 mm
Operating	−40 ~ +85 °C industrial grade

Applications

Industrial gatewaysEdge AI controllersHMI panelsIndustrial tabletsSmart manufacturing
