Industrial HMI · RK3568

MTU-68215

21.5-inch industrial HMI panel with RK3568 quad-core processor, 0.8 TOPS NPU, dual Gigabit Ethernet, isolated serial ports, and DI/DO relay. A cost-effective solution for factory automation and equipment control.

Inquire → ← Back to Products

Specifications

Full Specifications

Model

MTU-68215

Type

Industrial HMI

SoC

RK3568

CPU

Quad-core 2.0GHz (4×A55)

NPU

0.8 TOPS (RKNN)

GPU

Mali-G52 1EE

RAM

4GB LPDDR4X

Storage

64GB eMMC

Android 13

Display

21.5" 1920×1080 IPS

Brightness

450 cd/m²

Touch

G+G multi-touch capacitive

Wi-Fi

Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Bluetooth

BT 5.0 + BLE

NFC

Yes

Ethernet

2× Gigabit (1000M/100M/10M)

Serial

2×RS232, 2×RS485, 1×CAN, 1×UART

USB

Type-C OTG, 4× USB 2.0

HDMI

1× HDMI 4K@120Hz

Audio

2× 8Ω10W speaker, 3.5mm headphone, mic input, stereo out

Power

DC 12V~24V, adapter 12V/5A

Max Power

<50W

Standby

≤1W

Operate Temp

0°C ~ 50°C

Storage Temp

-20°C ~ 80°C

Material

CNC front panel, 1.5mm cold-rolled steel, painted black

Dimensions (mm)

516 × 313 × 59.4 mm

Weight

~7 kg

Key Features

MTU-68215

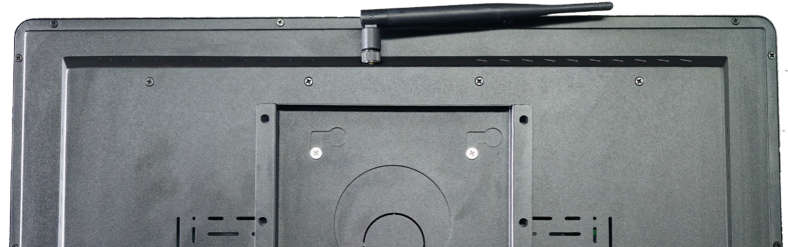

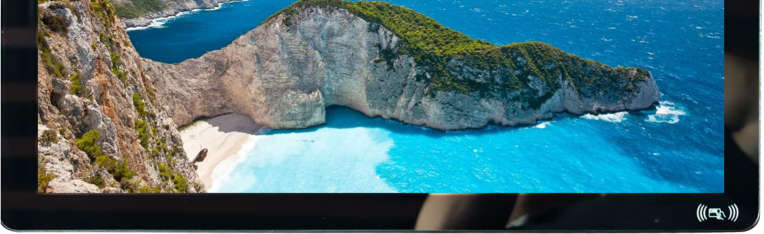

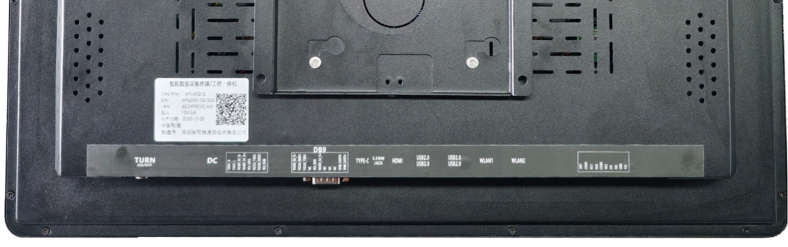

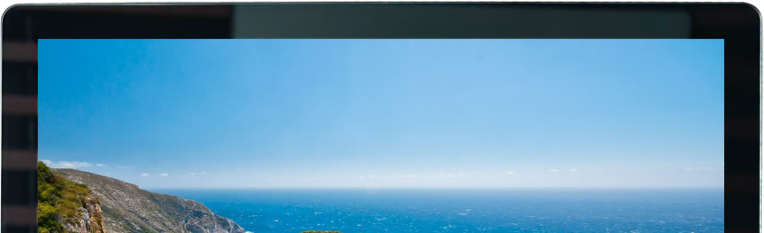

Product Gallery

Full Specifications

Product Highlights

Honeywell scanner support

DI/DO relay (10-pin Phoenix)

Isolated serial (8-pin Phoenix)

DB9 11-pin

Cost-effective RK3568 platform

Typical Applications

Factory automation HMI

Equipment control panel

Warehouse management

Self-service terminal

Production monitoring
